FRAME 01 / 01SCALE 1 : 5

Dimensional Schedule

151 SIZES · SCROLL

Size	t	w	kg/m
3×12 mm	3	12	0.283
3×16 mm	3	16	0.377
3×19 mm	3	19	0.447
3×25 mm	3	25	0.589
3×32 mm	3	32	0.754
3×38 mm	3	38	0.895
3×50 mm	3	50	1.177
3×65 mm	3	65	1.531
3×75 mm	3	75	1.766
3×100 mm	3	100	2.355
4.5×12 mm	4.5	12	0.424
4.5×16 mm	4.5	16	0.565
4.5×19 mm	4.5	19	0.671
4.5×25 mm	4.5	25	0.883
4.5×32 mm	4.5	32	1.13
4.5×38 mm	4.5	38	1.342
4.5×50 mm	4.5	50	1.766
4.5×65 mm	4.5	65	2.296
4.5×75 mm	4.5	75	2.649
4.5×100 mm	4.5	100	3.532
5×25 mm	5	25	0.981
5×32 mm	5	32	1.256
5×38 mm	5	38	1.491
5×50 mm	5	50	1.962
5×65 mm	5	65	2.551
5×75 mm	5	75	2.944
5×100 mm	5	100	3.925
6×12 mm	6	12	0.565
6×16 mm	6	16	0.754
6×19 mm	6	19	0.895
6×25 mm	6	25	1.177
6×32 mm	6	32	1.507
6×38 mm	6	38	1.79
6×50 mm	6	50	2.355
6×65 mm	6	65	3.061
6×75 mm	6	75	3.532
6×90 mm	6	90	4.239
6×100 mm	6	100	4.71
6×125 mm	6	125	5.887
6×150 mm	6	150	7.065
6×175 mm	6	175	8.242
6×200 mm	6	200	9.42
6×250 mm	6	250	11.775
6×300 mm	6	300	14.13
8×25 mm	8	25	1.57
8×32 mm	8	32	2.01
8×38 mm	8	38	2.386
8×50 mm	8	50	3.14
8×65 mm	8	65	4.082
8×90 mm	8	90	5.652
8×100 mm	8	100	6.28
8×125 mm	8	125	7.85
8×150 mm	8	150	9.42
8×200 mm	8	200	12.56
9×19 mm	9	19	1.342
9×25 mm	9	25	1.766
9×35 mm	9	35	2.473
9×180 mm	9	180	12.717
9×200 mm	9	200	14.13
9×230 mm	9	230	16.249
9×250 mm	9	250	17.662
9×300 mm	9	300	21.195
12×25 mm	12	25	2.355
12×32 mm	12	32	3.014
12×38 mm	12	38	3.58
12×50 mm	12	50	4.71
12×65 mm	12	65	6.123
12×75 mm	12	75	7.065
12×90 mm	12	90	8.478
12×100 mm	12	100	9.42
12×125 mm	12	125	11.775
12×150 mm	12	150	14.13
12×180 mm	12	180	16.956
12×200 mm	12	200	18.84
12×230 mm	12	230	21.666
12×250 mm	12	250	23.55
12×280 mm	12	280	26.376
12×300 mm	12	300	28.26
16×25 mm	16	25	3.14
16×32 mm	16	32	4.019
16×38 mm	16	38	4.773
16×50 mm	16	50	6.28
16×65 mm	16	65	8.164
16×75 mm	16	75	9.42
16×90 mm	16	90	11.304
16×100 mm	16	100	12.56
16×125 mm	16	125	15.7
16×150 mm	16	150	18.84
16×180 mm	16	180	22.608
16×200 mm	16	200	25.12
16×230 mm	16	230	28.888
16×250 mm	16	250	31.4
16×280 mm	16	280	35.168
16×300 mm	16	300	37.68
18×75 mm	18	75	10.597
18×100 mm	18	100	14.13
18×125 mm	18	125	17.662
18×150 mm	18	150	21.195
18×200 mm	18	200	28.26
18×225 mm	18	225	31.792
18×250 mm	18	250	35.325
18×275 mm	18	275	38.857
18×300 mm	18	300	42.39
19×38 mm	19	38	5.668
19×50 mm	19	50	7.457
19×65 mm	19	65	9.695
19×75 mm	19	75	11.186
19×90 mm	19	90	13.423
19×100 mm	19	100	14.915
19×125 mm	19	125	18.644
19×150 mm	19	150	22.372
19×180 mm	19	180	26.847
19×200 mm	19	200	29.83
19×230 mm	19	230	34.304
19×250 mm	19	250	37.287
19×280 mm	19	280	41.762
19×300 mm	19	300	44.745
22×50 mm	22	50	8.635
22×65 mm	22	65	11.225
22×75 mm	22	75	12.952
22×90 mm	22	90	15.543
22×100 mm	22	100	17.27
22×125 mm	22	125	21.587
22×150 mm	22	150	25.905
22×180 mm	22	180	31.086
22×200 mm	22	200	34.54
22×230 mm	22	230	39.721
22×250 mm	22	250	43.175
22×280 mm	22	280	48.356
22×300 mm	22	300	51.81
25×65 mm	25	65	12.756
25×75 mm	25	75	14.719
25×90 mm	25	90	17.662
25×100 mm	25	100	19.625
25×125 mm	25	125	24.531
25×150 mm	25	150	29.437
25×180 mm	25	180	35.325
25×200 mm	25	200	39.25
25×230 mm	25	230	45.137
25×250 mm	25	250	49.062
25×280 mm	25	280	54.95
25×300 mm	25	300	58.875
32×100 mm	32	100	25.12
32×125 mm	32	125	31.4
32×150 mm	32	150	37.68
32×180 mm	32	180	45.216
32×200 mm	32	200	50.24
32×230 mm	32	230	57.776
32×250 mm	32	250	62.8
32×280 mm	32	280	70.336
32×300 mm	32	300	75.36

MS LongIn stockLead 2–4 weeks

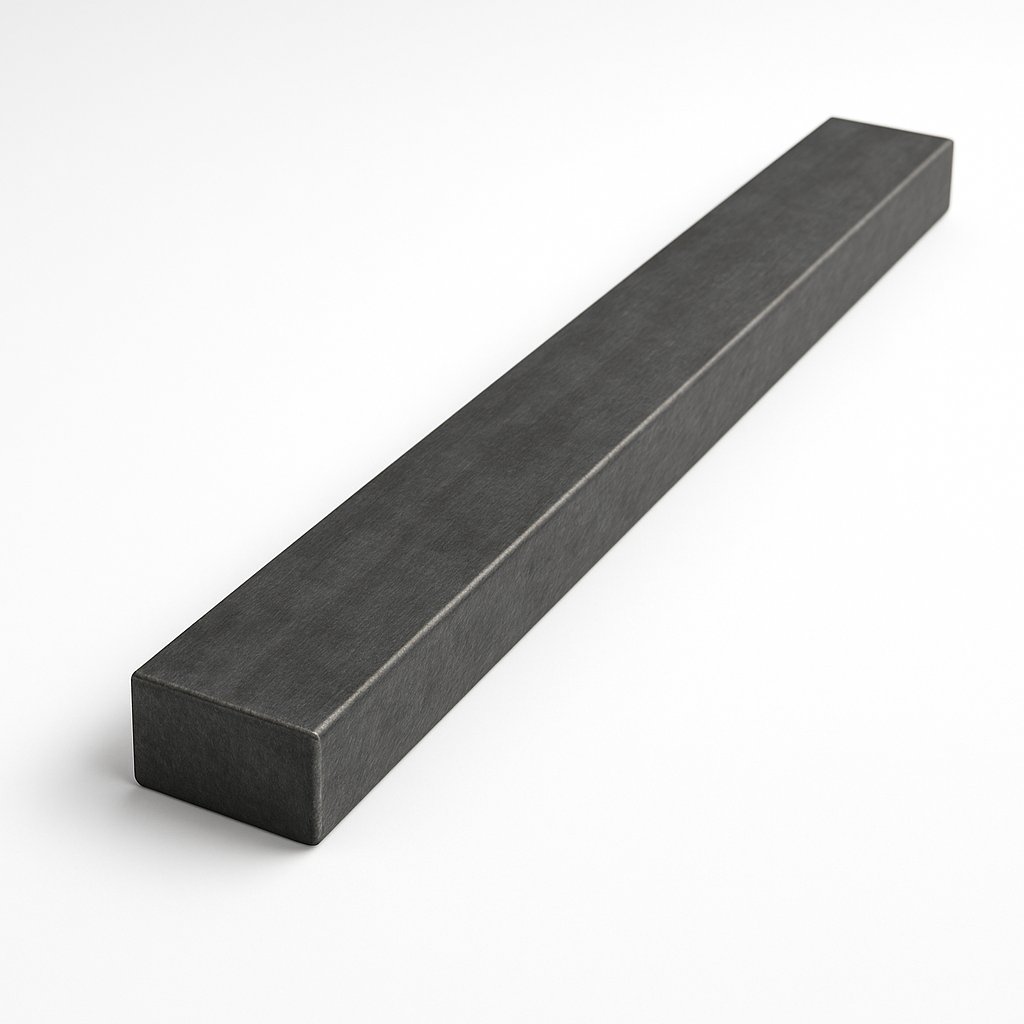

MS Flat Bar · 50 × 6 × 6m

SKU CC-LMS-FLB-050 · GRADE IS 2062 E250

Mild Steel flat bar (50 × 6 × 6m) — a long product conforming to IS 2062 E250. Hot-rolled rectangular bar, surface-machined edges and uniform cross-section. Standard buyer applications include real estate, automotive, general fabrication. Material finish: raw mill finish with characteristic dark mill scale; suitable for further coating. All stock is supplied with mill test certificate (MTC), heat number traceability, and optional SGS / BV / TÜV pre-shipment inspection. Cut-to-length, slit-edge, and packing options available. Indicative MOQ 5 MT for full coil/section runs, smaller break-bulk quantities on enquiry.

Standards	JIS G3193 · GB/T 702 · ASTM A36 · EN 10025
Grades	SS400 · Q195 · Q235B · A36 · S235JR
Size range	3 × 12 mm to 32 × 300 mm (thickness × width, 151 sizes)
Thickness	3 mm – 32 mm
Width	12 mm – 300 mm
Unit weight	0.28 kg/m – 75.4 kg/m
Standard length	6 m · 9 m · 12 m (custom cut on request)
Surface	Black (hot-rolled) · pickled & oiled · galvanised on request
Origin	China · India
Packing	Bundled in mill bundles, steel-strapped at 3–4 points. Bundle weight 2–5 MT.
Shipment	Bulk / Container / FCL
MOQ	20 MT/size
Lead time	15–25 days
Incoterms	FOB / CFR / CIF / DAP
Test cert	EN 10204 3.1 with every shipment; SGS / BV / TÜV on request

Dimensional Schedule

MS Flat Bar · 50 × 6 × 6m
